Outboard Bracket, Electric. PANTHER

NZD $79.21NZD $2,072.52

SKU: N/A Category:

Description

Eliminate the hassle and back strain of manually lifting heavy outboards not fitted with factory tilt.
Controlled by push button remote attached to 12ft (3.6m) of flexi-cable.
Trimming possible while under power.
1 year manufacturer’s warranty on all models.

1 – OU404 – Model 35

This model will hold 2 and 4 stroke motors up to 35hp and 68kg (150lb) in weight – screw clamp type only.
Ideal for auxiliary and trolling motors,
Please note – this bracket is designed for recreational boats and is not recommended for heavy or commercial use.

Dimensions –
Setback – 170mm (distance engine is spaced back from transom).
Overall height – 440mm, width 290mm.
Transom mounting face – height 305mm, width 255mm (includes six 1/2″ mounting holes).
Engine mounting face – height 380mm, width 220mm (overall width 270mm, no engine mounting holes).
55 degrees of tilt.
Weight 9.5kg (21lb).

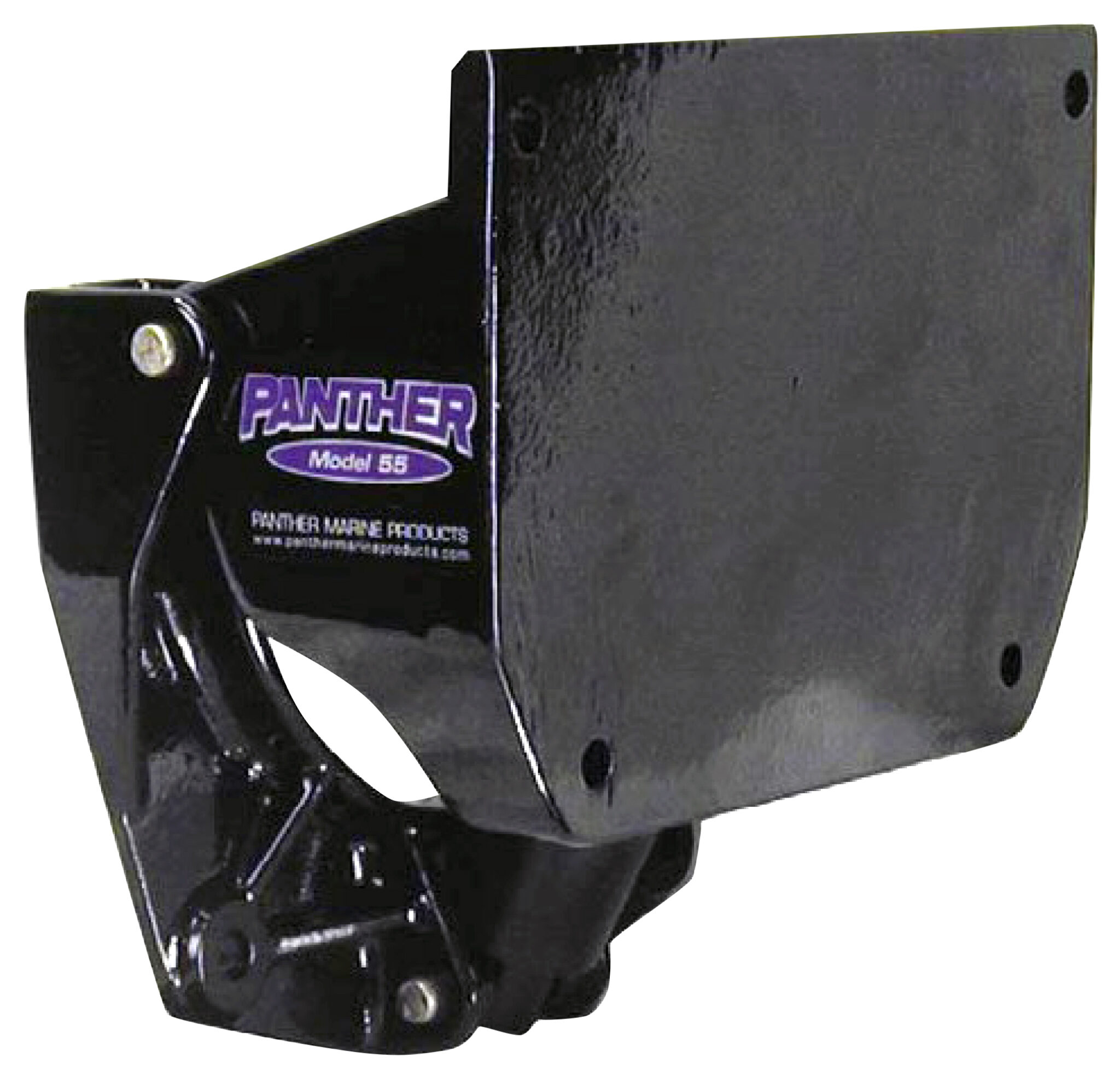

2 – OU405 – Model 55

Designed for 2 and 4 stroke motors 15hp to 55hp and up to 113kg (250lb) in weight.
Trimming possible while under power.
Bracket can also trim motors (up to 5 degrees tuck) for improved performance.

Dimensions –
Engine mounting face – height 254mm, width 362mm
Drilled to suit most outboards.
Transom mounting face – height 279mm, width 387mm
Weight 10.4kg (22lb).

3 – OU401 – Anode Kit

This sacrificial anode provides protection for all Panther Trim & Tilt units when used in salt or brackish water. Mounting bolt supplied. Approximately 125mm long x 50mm wide.

Please Note: Some items are a Tenob manufactured and/or assembled part with several components. For that reason, it is not unusual for the product to show as out of stock if the assembled version hasn’t yet been entered into stock. Please order as normal and call us if you need a live update on availability.
