Description
We have two other rise and fall outboard brackets available. Both are for lighter duty (10hp) but at a market-leading price point considering the quality.

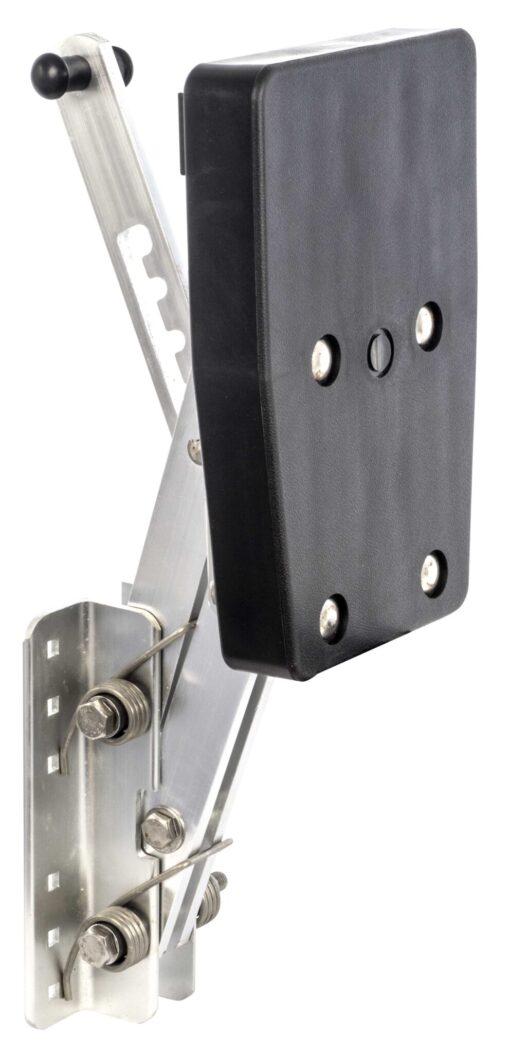

OU017 – Transom Mount, Alloy Frame.
This style of outboard bracket has been around for many years and is proven, popular and reliable.
Suitable for light duty applications, it is constructed from anodised aluminium with a black plastic clamp board.
Ratings – Standard shaft 10hp/7.5kw (2 stroke), long shaft 8hp maximum.
Maximum motor weight – 38kg.
Supplied with stainless steel bolts, nuts and washers.
Vertical movement – 340mm.
Arm length – 320mm.
OU019 – Transom Mount, Stainless Steel Frame.
Made by Seaworld, this bracket is for light duty application.
Stainless steel construction with a timber mounting block.
Adjustable for various transom angles.
Ratings – Standard shaft 10hp/7.5kw (2 stroke), long shaft 8hp maximum.
Maximum motor weight – 38kg.
Small mounting footprint – 140mm high x 103mm wide.
Vertical movement – 300mm.
Transom set back 320mm.
Timber width – 170mm.
Great value for money!
