Description

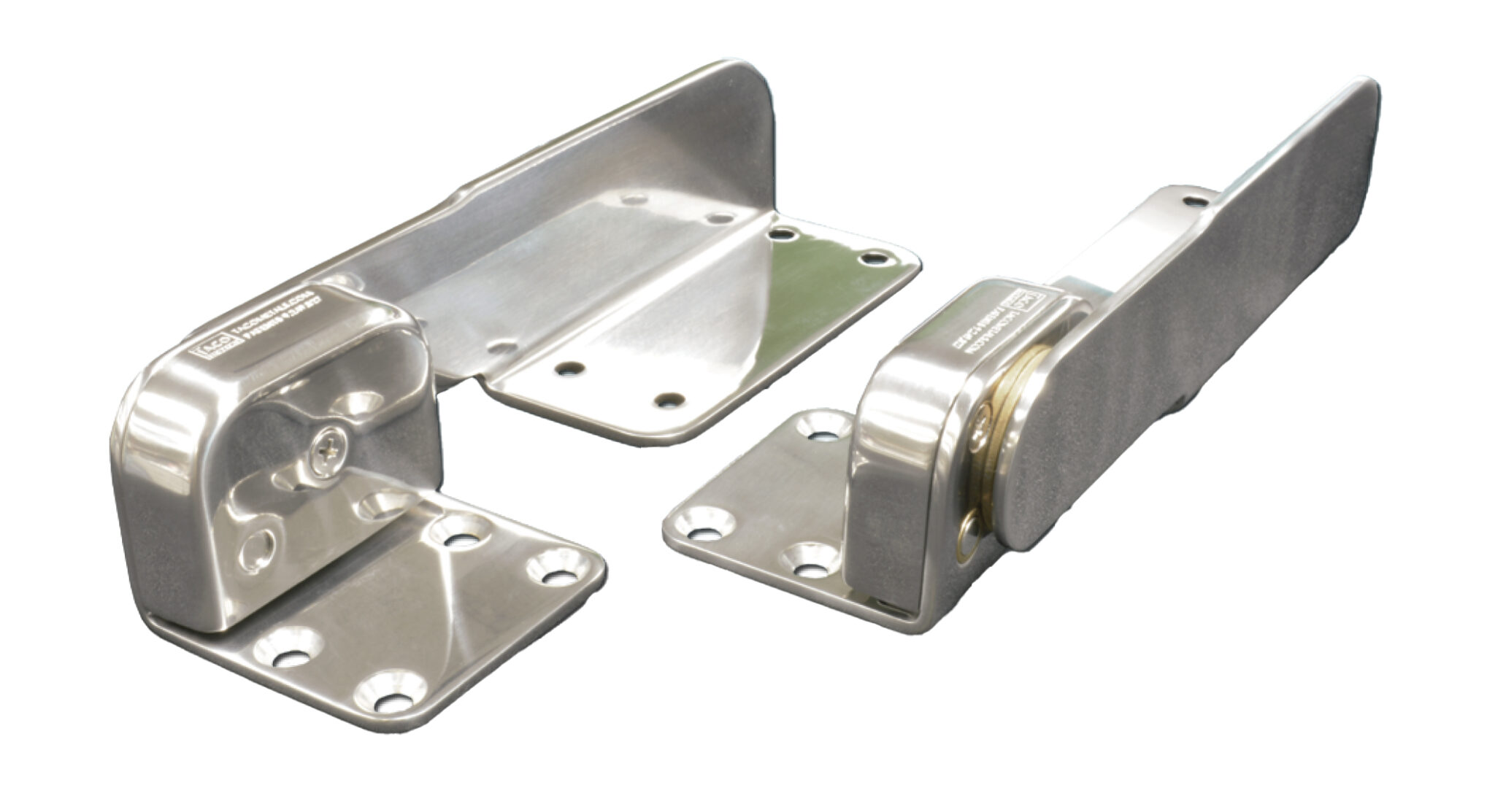

Constructed from high-grade stainless steel and brass, the Command Ratchet Hinge is ideal for sun pads, bolsters and lounge backrests.
This heavy-duty specialty hinge has a 15º locking inclination and ratchets up to four positions.
Highly polished marine-grade stainless-steel Type-304.
All brass bearings for durability.
Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair.
15º locking inclination increments, starting at 30º.
Easily adaptable to many applications.
Designed for up to 4″ thick cushions.
Returns to horizontal position at 100º.
Countersunk for #10 fastener or 1/4-20 bolt.
Sold in pairs.
5-year limited warranty.
