Description
We have a wide range of senders, and senders with gauge, to cover nearly every requirement. They are made by Moeller and are suitable for petrol & diesel. We also have a low-cost basic mechanical sender from Osculati.
IN1725: Industry standard 33 ~ 240 ohms. For tank depths 100mm (4″) to
685mm (27″). Tank sender only.
IN1726: Industry standard 33 ~ 240 ohms. For tank depths 100mm (4″) to
685mm (27″). Rheostat type. (IN1725 + gauge) (gauge not suitable for
PWC).
IN1794: Industry standard 33 ~ 240 ohms. For tank depths 152mm (6″) to
610mm (24″). Reed switch type. (IN1791 + gauge)
IN1750: Mechanical sender with gauge. For tanks 190mm (7.5″) deep.

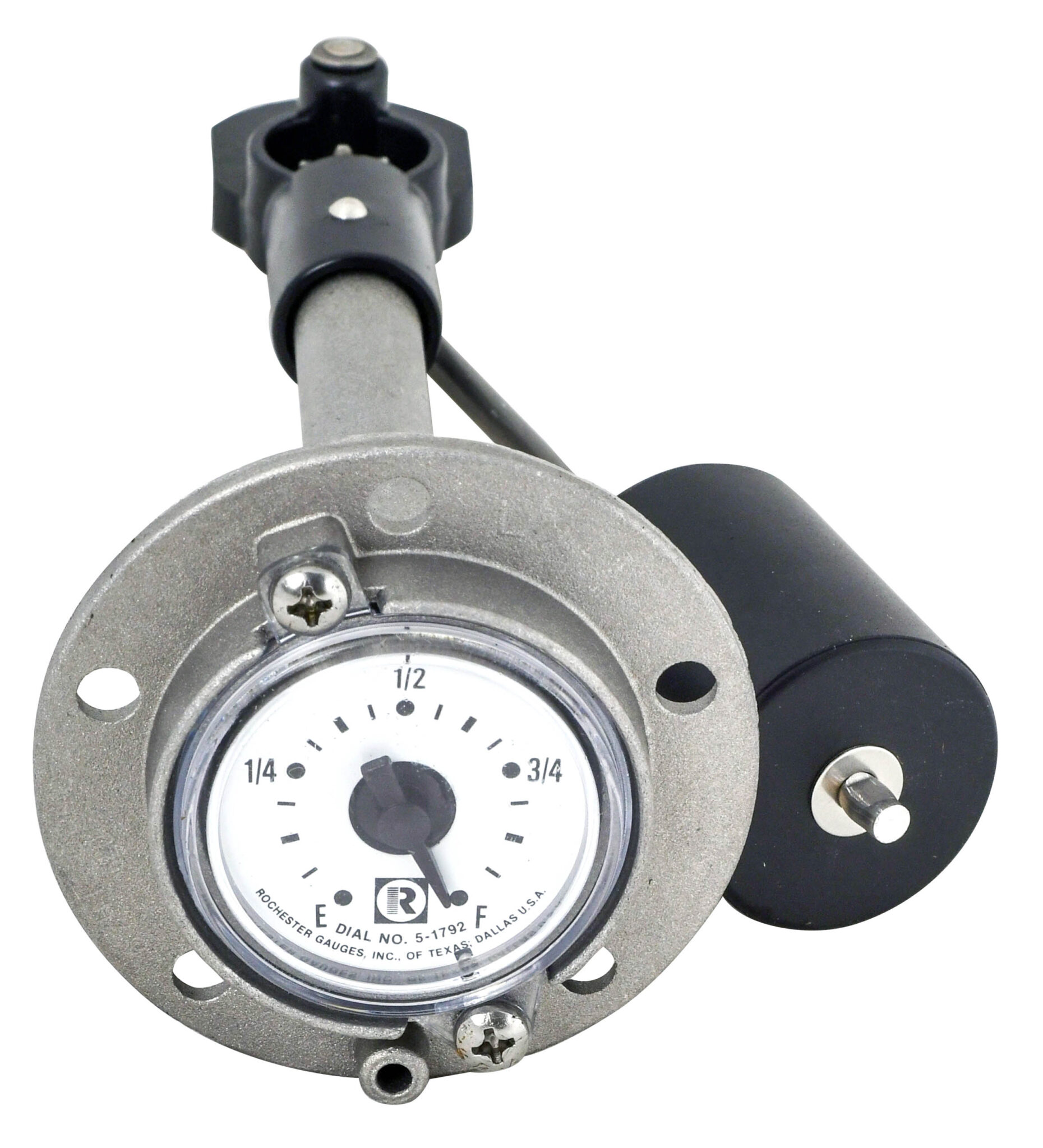

IN1752: Mechanical sender with gauge. For tanks 250mm (10″) deep.
IN1755: Mechanical sender with gauge. For tanks 350mm (14″) deep.
IN1757: Mechanical sender with gauge. For tanks 440mm (17.75″) deep.
IN1759: Indicator capsule only. Replacement part for IN1750 series senders. Fits Tempo indicators
also.
IN1760: Converts Moeller mechanical tank sender (IN1750, 035750-10) series to electric. 33 to 240 ohms.
IN1791: Reed array fuel level sender with adjustable float arm.
Sender suits 4” (100mm) to 24” (610mm) tank depth.
Features protection from corrosion (internal and external to the fuel tank).
Standard with a SAE 5 hole mounting bolt pattern.
Suitable for petrol, ethanol, diesel, bio diesel and non-potable water.
Manufacturer’s Lifetime Warranty.
IN10637: Sender unit only, 10-180 Ohm, suits tank depth 8” to 24”. Made by Moeller.
IN15: Italian made. A basic mechanical tank level indicator. Made of nylon and PVC. International 5-hole circular mounting flange – 75mm diameter. 43mm diameter tank hole required. Protrudes 15mm above the mounting surface. Suitable for tank depths of up to 300mm. Usable in fuel and water tanks.
PAIN728B: Gasket for fuel sender, universal. Supplied with fixings.
Please Note: Some items are a Tenob manufactured and/or assembled part with several components. For that reason, it is not unusual for the product to show as out of stock if the assembled version hasn’t yet been entered into stock. Please order as normal and call us if you need a live update on availability.
